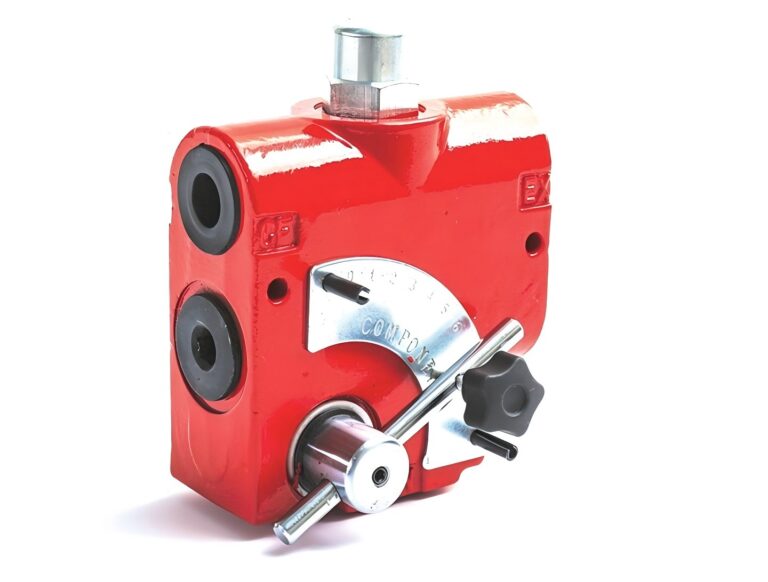

LKF Series Flow Control Valve Introduction

• LKF series flow control valve with pressure compensation, flow can be adjusted, its special design, so that the orifice area changes with the rotation of the lever, no matter how the pressure of the control port or the overflow oil port changes, the outlet flow is smooth and constant. An adjustable relief valve is integrated into the valve to act as a safety valve, with a preset pressure of 1500psi and field adjustable pressure of 75psi to 3000psi.

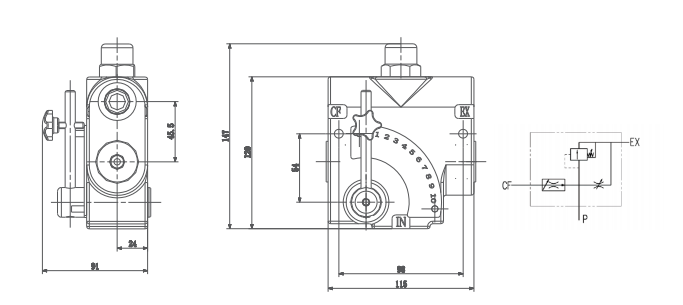

Dimensions

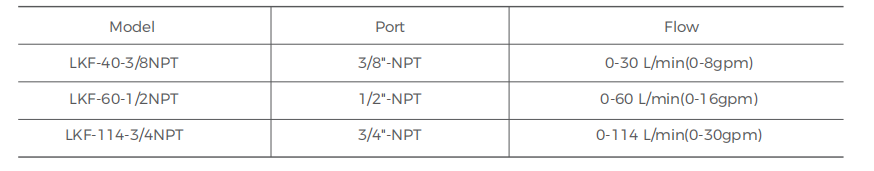

Ordering Code
