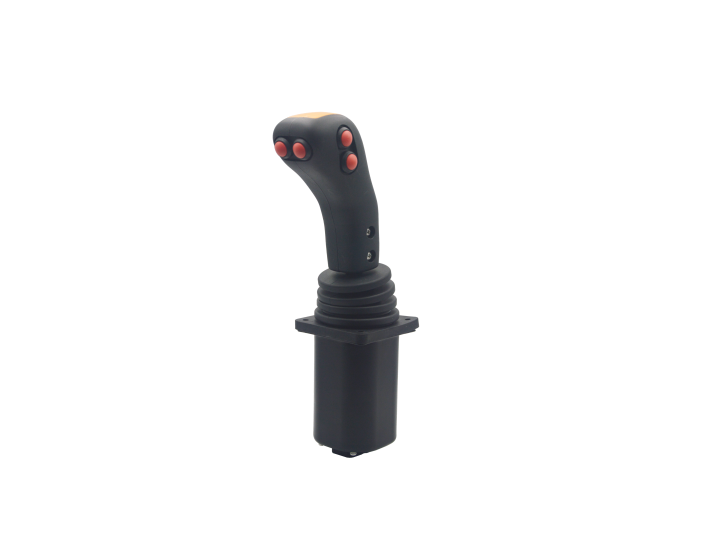

HHH-26B Smart Shift Joystick

HHH-26B is a shift control joystick developed for roller and grader. It has built-in controller, which can realize the functions of the increase or decrease of gear, and has some functions of VCU. The intelligent shift operation joystick follows the principle of ergonomics. has a comfortable feel, while ensuring the high reliability and accuracy of the operation, with a wide range of application.

Online Chat

    

Description

HHH-26B is a shift control joystick developed for roller and grader. It has built-in controller, which can realize the functions of the increase or decrease of gear, and has some functions of VCU. The intelligent shift operation joystick follows the principle of ergonomics. has a comfortable feel, while ensuring the high reliability and accuracy of the operation, with a wide range of application.

Characteristic

CAN Bus Interface
IP65 protectionlevel (top)
IO function (software setting)
Application in harsh environments
Direct drive of the hydraulic valve

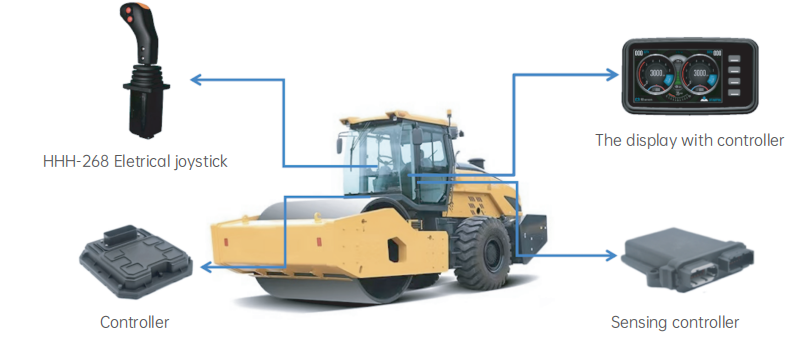

Typical applications: roller series, loader series, grader series and other equipment equipped with hydraulic gear shifting transmission

Technical Parameter
