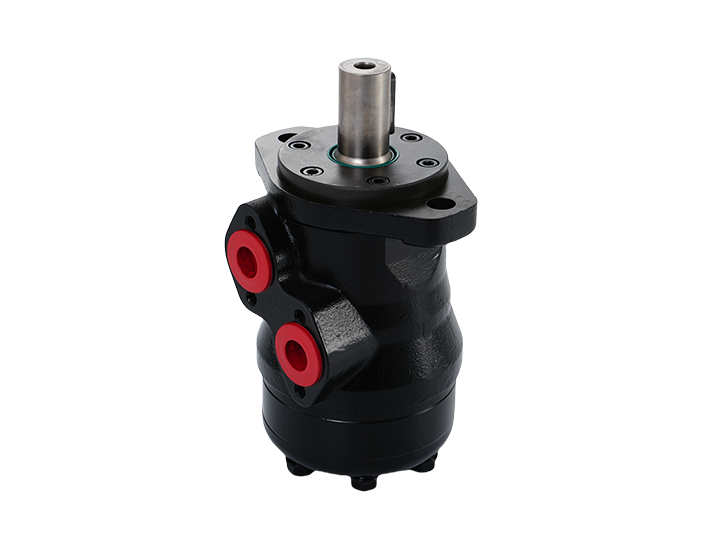

GRH has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.

Online Chat

PDF Download 

    

Product Description

RYAN has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.

Options

Flange connection
Motor with needle bearing
Side and rear ports
Straight, splined and tapered shafts
Shaft seal for high and low pressure
Metric and BSPP ports
Speed sensing
Other special features

Applications

Conveyors
Feeding medanism ofrobots and manipulators
Metal working machines
Textile machines
Agricultural machines
Food industries
Lawn mower

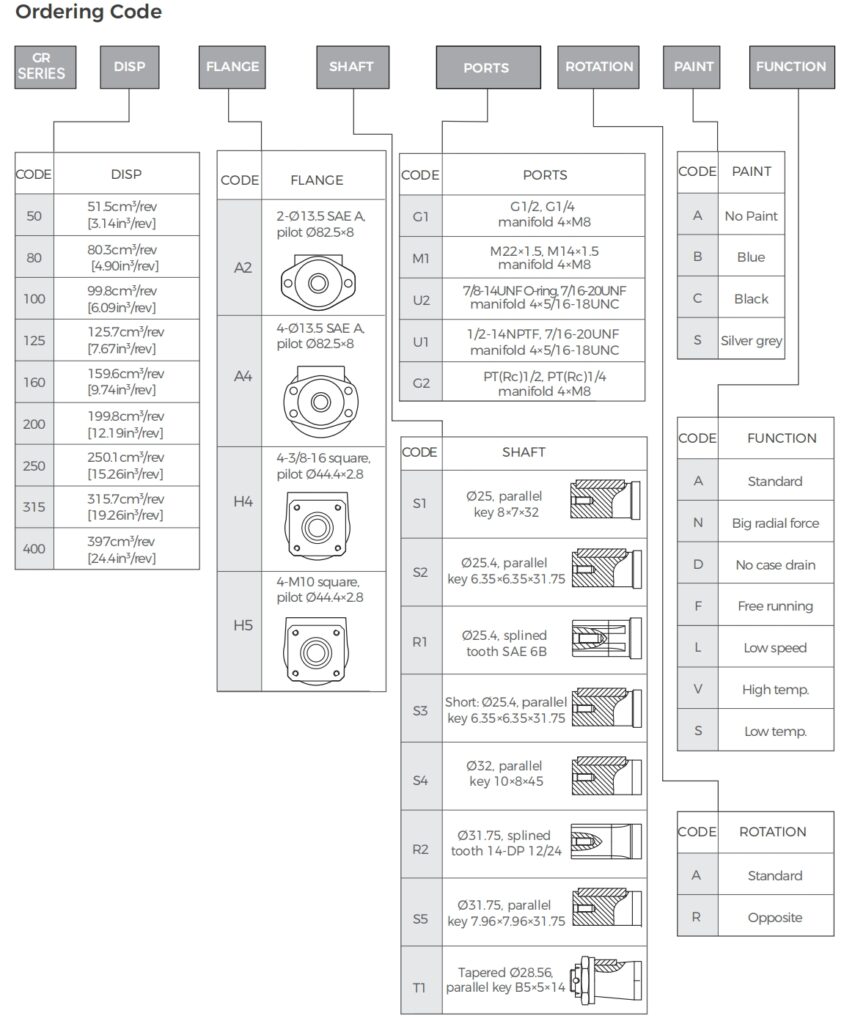

Ordering Code

Technical Parameters

Max. Displacement cm³/rev[in³/rev]	397[24.4]
Max. Speed [RPM]	970
Max. Torque daNm [lb-in]	Cont: 84[7434] Int: 104[9204]
Max. Output kW[HP]	15 [20.1]
Max. Pressure Drop bar[PSI]	Cont: 175[2540] Int: 200[2900]
Max. Oil Flow lpm[GPM]	75 [20]
Min. Speed [RPM]	10
Pressure fluid	Mineral oil - HLP (DIN 51524) or HM (ISO 6743/4)
Temperature range ℃[℉]	-40÷140 [-40÷284]
Viscosity range mm²/s[SUS]	20÷75 [98÷347]
Filtration	ISO code: 20/16 (Min.recommended fluid filtration of 25 microns)

Type		GR	GR	GR	GR	GR	GR	GR	GR	GR
Type		50	80	100	125	160	200	250	315	400
Displacement.cm³ /rev [ in³/rev ]		51.5[3.14]	80.3[4.90]	99.8[6.09]	125.7[7.67]	159.[69.74]	199.8[12.19]	250.1[15.26]	315.7[19.26]	397[24.4]
Max. Speed.	Cont.	775	750	600	457	375	300	240	190	150
[RPM]	Int.*	970	940	750	600	470	375	300	240	190
Max. Torque	Cont.	10[900]	20[1770]	24[2125]	30[2655]	39[3450]	45[4000]	54[4780]	55[4870]	61[5400]
daNm [lb-in]	Int.*	13[1150]	22[1947]	28[2480]	34[3010]	43[3805]	50[4425]	61[5400]	69[6110]	69[6110]
	Peak**	17[1505]	27[2390]	32[2832]	37[3275]	46[4070]	56[4960]	71[6280]	84[7435]	87[7700]
Max. Output	Cont.	7[9.5]	12.5[17]	13[17.4]	12.5[16.8]	11.5[15.4]	11[14.8]	10[13.4]	9[12]	7.8[10.5]
kW[ HP]	Int.*	8.5[11.9]	15[20.1]	15[20.1]	14.5[19.5]	14[18.8]	13[17.4]	12[16.1]	10[13.4]	10.6[14.2]
Max. Pressure Drop	Cont.	140[2030]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	135[1960]	110[1600]
bar [PSI]	Int.*	175[2540]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	175[2540]	140[2030]
	Peak**	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]
Max. Oil Flow	Cont.	40[10.5]	60[15.8]	60[15.8]	60[15.8]	60[15.8]	60[15.8]	60[15.8]	60[15.8]	60[15.8]
lpm [GPM]	Int.*	50[13.2]	75[19.8]	75[19.8]	75[19.8]	75[19.8]	75[19.8]	75[19.8]	75[19.8]	75[19.8]
Max. Inlet Pressure	Cont.	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]
bar [PSI]	Int.*	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]
	Peak**	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]
Max. Return Pressure	Cont.	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]	175[2540]
with Drain Line	Int.*	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]	200[2900]
bar [PSI]	Peak**	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]	225[3260]
Max. Starting Pressure with Unloaded Shaft. bar [PSI]		10[145]	10[145]	10[145]	9[130]	7[102]	5[73]	4[58]	3[44]	3[44]
Min. Starting Torque daNm [lb-in]	At max. press. drop Cont.	8[710]	15[1330]	20[1770]	25[2215]	32[2832]	41[3630]	50[4425]	50[4425]	50[4425]
Min. Starting Torque daNm [lb-in]	At max. press. drop Int.*		17[1505]	23[2035]	28[2480]	37[3275]	46[4070]	55[4870]	66[5840]	61[5400]
Min. Speed***. [RPM]		10	10	10	10	10	10	10	10	10
Weight.kg[lb] For rear ports:+0.650[1.433]	GR(S)	6.9[15.2]	7[15.4]	7.3[16.1]	7.4[16.3]	7.6[15.4]	8.1[18.9]	8.5[18.7]	9.2[20.3]	9.9[21.8]

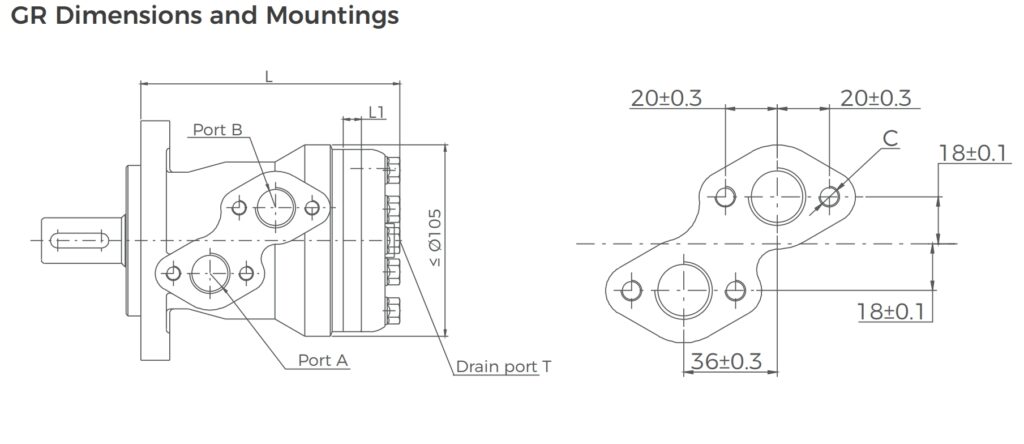

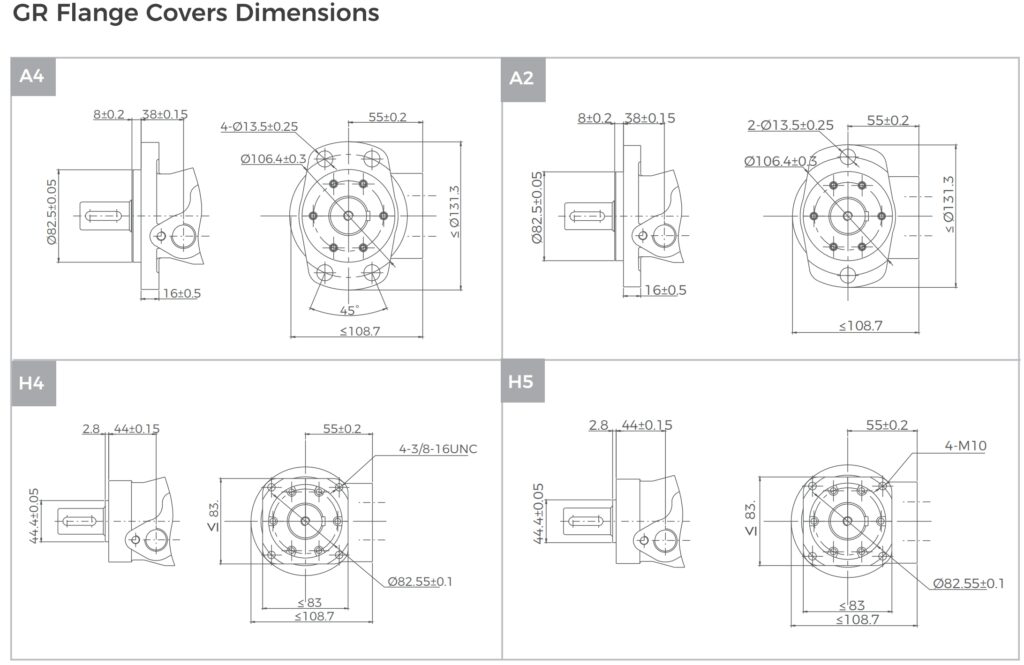

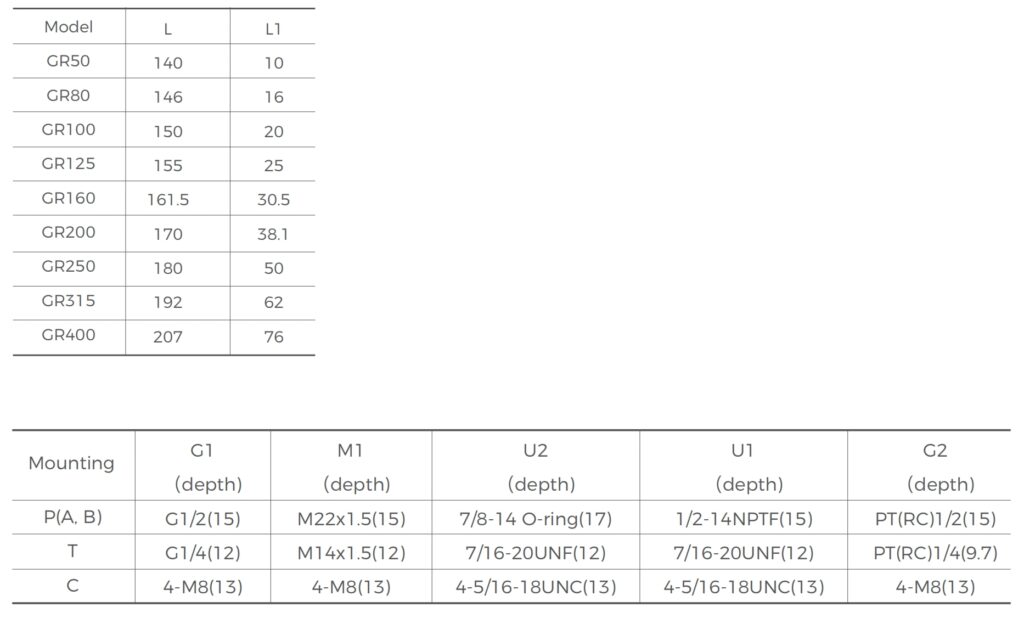

Dimensions

Crossover Table for Orbital Motors

No.	Ryan Series	DF	ET	CL	WD	PK	MS	BV
1	GM	OMM	J	129			MM/MLHM	BGM
2	GP	OMP					MP/MLHP	BG
3	GPH		H	101			HP	BH
4	GP-H	OMPX
5	GR	OMR			RS		MR	BR
6	GRS		S	103	DH/DS		HR	BS
7	GR-H	OMRX
8	GH	OMH					MH
9	GS	OMS					MLHS	HR
10	GSS	OMSS					MLHSS
11	GT	OMT					MLHT	HT
12	GTS	OMTS					MLHTS
13	GV	OMV	10000 SERIES				MLHV
14	GVS	OMVS					MLHVS
15	GFA					TE
16	GFB					TB
17	GFD					TG
18	GFE					TGK
19	GFF					TF
20	GFK					TK
21	GKA		2000 SERIES	104/105/106
22	GKB		4000 SERIES	109/110/111
23	GKC		6000 SERIES	112/113/114
24	GGM					MGG
25	GWD		DELTA SERIES		RE 500/501 CE		HW
26	GWH				HB
27	GBD	BK913/915
28	GKA-BK10				DR
30	GFD-BK				BG
