GRH has three series sectional valve, GKV35, GKV50 and GKV80. The multi-way valve of the GKV series is a modular open multi-way valve, modules with different functions can be selected to meet the design of various complex systems.

Online Chat

    

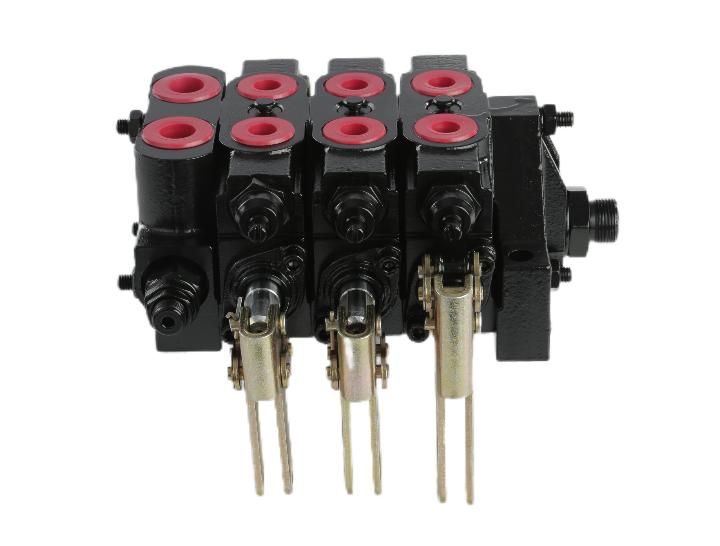

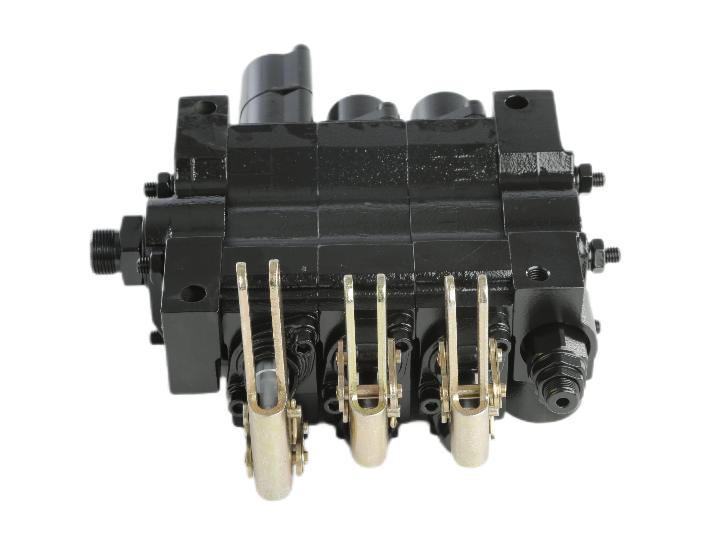

Product Description

GKV35 series sectional valves are open circuit valves. Mainly used in mobile machines such as, agricultural machinery, construction machines, mining equipment, material handling equipment as well as maintenance machines. The valve series adapted modular design. The system designer can choose different modules to design a complex system. Main valve spool is designed to satisfy with the customer requirements, which provides excel_x005flent flow characteristics and very low flow force. With different inlet modules, it gives user the freedom for choosing different relief valve and different port locations. There are numbers of different work section modules to choose to satisfy the customer needs. Different end sections also provide the customer needs for return ports or power beyond functions.

Functions

A/B Port with overload valve on main section
A Port with overload valve on main section
B Port with overload valve on main section
A/B Port with check valve
End section with oil return port
End section without oil return port
End section with power beyond port
Provide other cartridge valve option

Features

Cast iron body (inlet section, main section and end section).
Spring cap, mechanical detent cap, as well as electric or hydraulic pilot controlled module body are made by
cast aluminum or die-cast aluminum.
Parallel circuit. Each section has its own load check valve, Each section has load relief option and relief style options.
Can be changed to series circuit.
Provides dump valve options for each work port.
Provides different drive modules (hydraulic remote, manual control, wire driving).
Provides power beyond port.
Can be modified to be a close circuit.
Provides mechanical detent.
Provides options for different type of relieves and different relief valve locations in the inlet.
Provides options for mechanically actuated P. O. check valves to satisfied with the needs for tractors and mobile
cranes.
Provides different spool functions to be used for controlling double acting cylinder , single acting cylinders, hydraulic
motors.
Provides floating functions for spools.
Provides excellent flow characteristics and small operating force.
Can be proportional control without pressure compensation.
Can be assembled with 1-8 main sections.

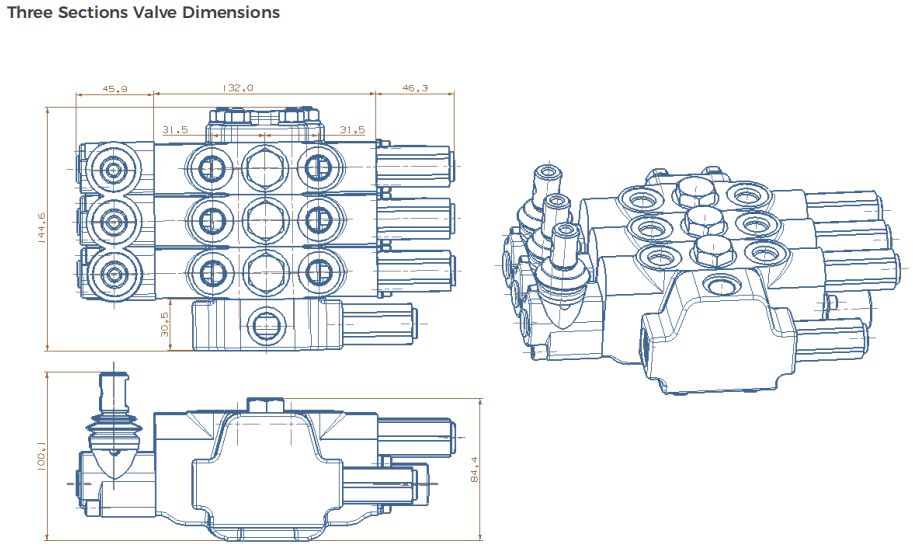

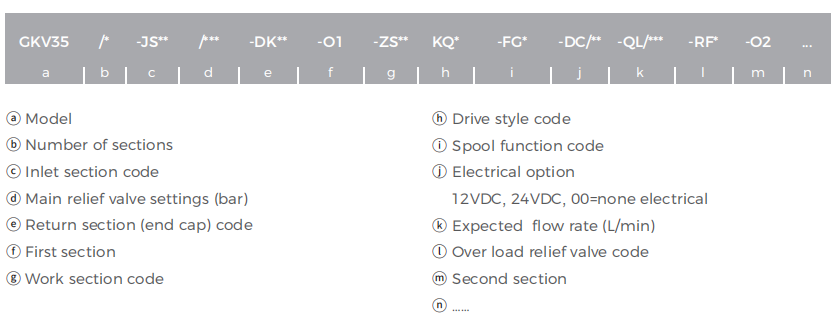

Ordering Code

Technical Parameters

Rated Flow Rate	35L/min	Max. Pressure at T port	25bar
Max. Flow Rate	40L/min	Internal leakage(@70 bar)A, B to T	＜8cc/min
Min. Flow Rate	10L/min	With P.O. check	＜3cc/min
Max. Pressure at P port	250bar	Spool stroke(1, 2 position)	+7/-7mm
Max. Pressure at A, B port	210bar	With floating function(1, 2 and F position)	+7/-7 -10mm
Solenoid can be either 12 or 24VDC, corresponding current is 0-1.5 or 0-0.75 Amp.
