RYAN has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.
| Max. Displacement cm3/rev[in3/rev] | 985[60.0] |
| Max. Speed [RPM] | 866 |
| Max. Torque daNm[lb-in] | cont.: 168.5 [14920] int.:187.5 [16580] |
| Max. Pressure Drop bar[PSI] | cont.: 205 [3000] int.: 310 [4500] |
| Max. Oil Flow lpm[GPM] | 225[60] |
| Pressure Fluid | Mineral based - HLP (DIN 51524) or HM (ISO 6743/4) |
| Temperature Range ℃[℉] | -40÷140[-40÷284] |
| Optimal Viscosity Range mm2/s[SUS] | 20 ÷ 75[98 ÷ 347] |
| Filtration | ISO code: 20/16 (Min: recommended fluid filtration of 25 microns) |
| TYPE | GKC195 | GKC245 | GKC310 | GKC390 | GKC490 | GKC625 | GKC735 | GKC805 | GKC985 | |
| Displ. cm³ /r [in³ /r] | 195 [11.9] | 245 [15.0] | 310 [19.0] | 390 [23.9] | 490 [30.0] | 625 [38.0] | 735 [45.0] | 805 [49.0] | 985 [60.0] | |
| Max. Speed RPM | Cont. | 775 | 615 | 485 | 387 | 307 | 241 | 203 | 187 | 153 |
| Int.* | 866 | 834 | 698 | 570 | 454 | 353 | 303 | 280 | 230 | |
| Flow IPM [GPM] | Cont. | 150 [40] | 150 [40] | 150 [40] | 150 [40] | 150 [40] | 150 [40] | 150 [40] | 150 [40] | 150 [40] |
| Int.* | 170 [45] | 210 [55] | 225 [60] | 225 [60] | 225 [60] | 225 [60] | 225 [60] | 225 [60] | 225 [60] | |
| Torque daNm [lb - in] | Cont. | 575 [5100] | 735 [6510] | 930 [ 8230] | 1155 [10230] | 1445 [12800] | 1480 [13100] | 1378 [12192] | 1582 [14004] | 1685 [14920] |
| Int.* | 860 [7620] | 1100 [9740] | 1355[11990] | 1635 [14490] | 1885 [16670] | 1898 [16800] | 1699 [15040] | 1850 [16377] | 1875 [16580] | |
| Pressure bar [PSI] | Cont. | 205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 205 [3000] | 170 [2500] | 140 [2000] | 140 [2000] | 140 [2000] |
| Int.* | 310 [4500] | 310 [4500] | 310 [4500] | 310 [4500] | 275 [4000] | 221 [3200] | 170 [2500] | 170 [2500] | 140 [2000] | |
| Peak** | 310 [4500] | 310 [4500] | 310 [4500] | 310 [4500] | 310 [4500] | 240 [3500] | 205 [3000] | 170 [2500] | 170 [2500] | |
| Weight kg [lb] | Standard or Wheel mount | 24.9 [55.0] | 25.2 [55.5] | 25.6 [56.5] | 26.3 [58.0] | 27.0 [59.5] | 27.9 [61.5] | 28.6 [63.0] | 29 [64.0] | 30.4 [67.0] |
| Bearingless | 20.2 [44.5] | 20.4 [45.0] | 20.9 [46.0] | 21.5 [47.5] | 22.2 [49.0] | 23.1 [51.0] | 23.8 [52.5] | 24.3 [53.5] | 25.6 [56.5] | |
| No. | Ryan Series | DF | ET | CL | WD | PK | MS | BV |
| 1 | GM | OMM | J | 129 | MM/MLHM | BGM | ||
| 2 | GP | OMP | MP/MLHP | BG | ||||
| 3 | GPH | H | 101 | HP | BH | |||
| 4 | GP-H | OMPX | ||||||
| 5 | GR | OMR | RS | MR | BR | |||
| 6 | GRS | S | 103 | DH/DS | HR | BS | ||
| 7 | GR-H | OMRX | ||||||
| 8 | GH | OMH | MH | |||||
| 9 | GS | OMS | MLHS | HR | ||||
| 10 | GSS | OMSS | MLHSS | |||||
| 11 | GT | OMT | MLHT | HT | ||||
| 12 | GTS | OMTS | MLHTS | |||||
| 13 | GV | OMV | 10000 SERIES | MLHV | ||||
| 14 | GVS | OMVS | MLHVS | |||||
| 15 | GFA | TE | ||||||
| 16 | GFB | TB | ||||||
| 17 | GFD | TG | ||||||
| 18 | GFE | TGK | ||||||
| 19 | GFF | TF | ||||||
| 20 | GFK | TK | ||||||
| 21 | GKA | 2000 SERIES | 104/105/106 | |||||
| 22 | GKB | 4000 SERIES | 109/110/111 | |||||
| 23 | GKC | 6000 SERIES | 112/113/114 | |||||
| 24 | GGM | MGG | ||||||
| 25 | GWD | DELTA SERIES | RE 500/501 CE | HW | ||||
| 26 | GWH | HB | ||||||
| 27 | GBD | BK913/915 | ||||||
| 28 | GKA-BK10 | DR | ||||||
| 30 | GFD-BK | BG |

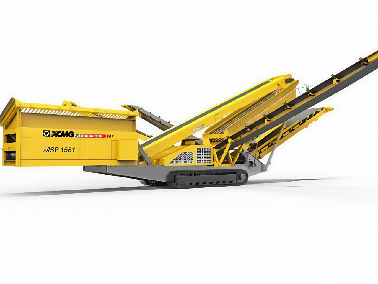

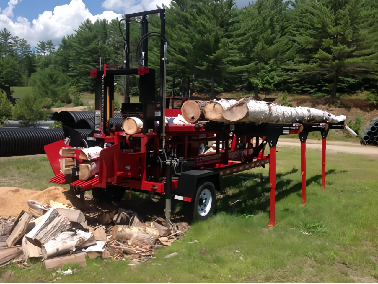

RYAN GH series cycloidal motors are widely used in conveyors, textile machinery, mining machinery, industrial processing, cooling equipment,
engineering machinery, and agricultural machinery.
