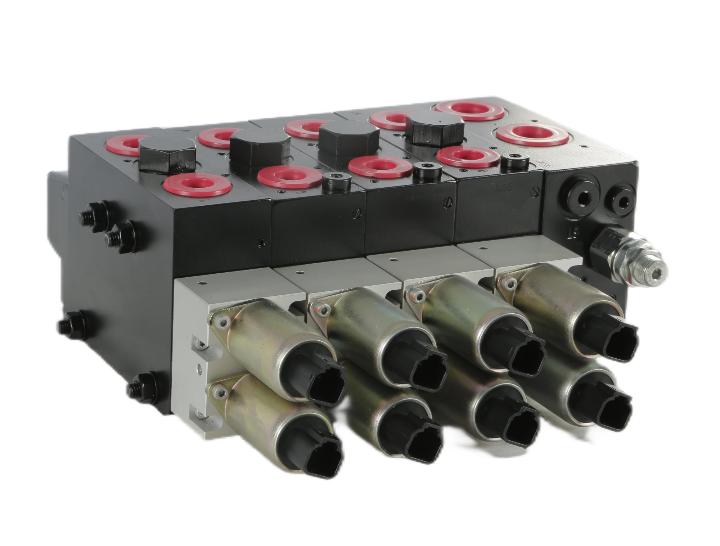

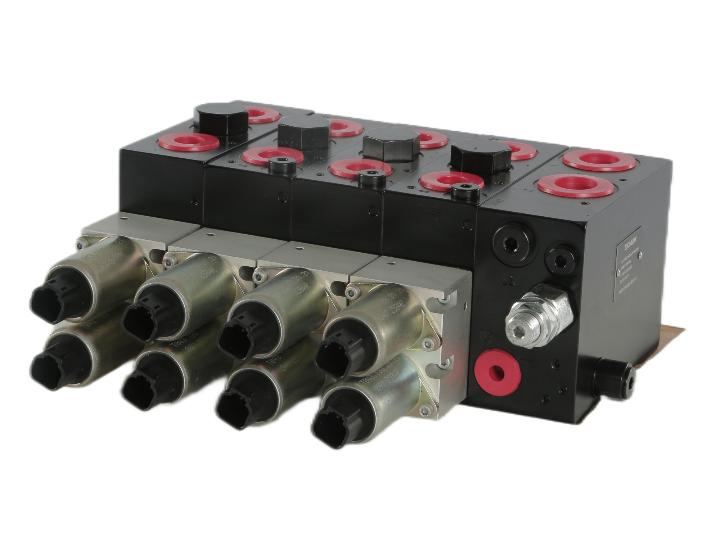

GBV60 Proportional valve is a load sensitive and pre-pressure compensated proportional valve. Because of the pressure compensation, working flow is independent of load. All the proportional valves in this series have been load sensing. We can choose different cartridge unit for the main valve body to accomplish different function. This series valve is building with modular design concept, system designer can choose different module to accomplish various complicated system design. Valve spool can provide excellent flow characteristics and low flow force.
| Max. pressure | P port(Con.) | 310 bar | [4495 psi] |
| P port(Int.) | 350 bar | [5075 psi] | |
| A/B port(Con.) | 310 bar | [4495 psi] | |
| A/B port(Int.) | 350 bar | [5075 psi] | |
| T port(Static/dynamic) | 25/40 bar | [365/580 psi] | |
| Rated flow | P port | 100 l/min | [22US gal/min] |
| A/B port | 55 l/min | [12US gal/min] | |
| Spool Stroke | Dead band | ±1.5 mm | [±0.06 in] |
| Proportional range | ±5.0 mm | [±0.2 in] | |
| Floating position | ±7.5 mm | [±0.3 in] | |
| Max. internal leakage at 100bar [1450 psi] and 21mm²[102 SUS] | A/B → T Unbuffered valve | 20 cm³/min | [1.85 in³/min] |
| A/B → T Buffer valve system setup 30 bar ystem setup 30 bar | 25 cm³/min | [2.15 in³/min] | |
| Oil port （Temperature） | Recommend | 30→60℃ | [86→140 ℉] |
| Min. | -30℃ | [-22 ℉] | |
| Max. | 90 ℃ | [194 ℉] | |
| Ambient temperature | -30→60℃ | [-22→140 ℉] |
