Product Description

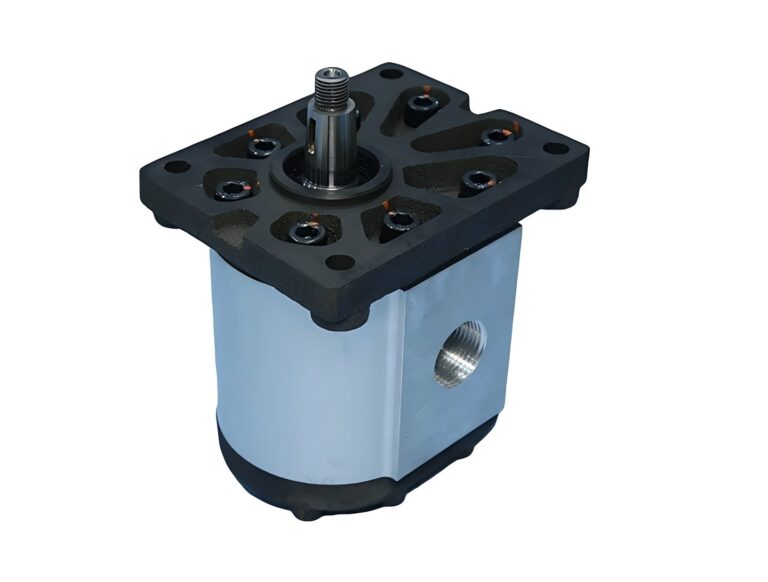

External gear pumps from RYAN Hydraulics have a floating bushing feature with automatic axial clearance compensation. The bushings are made with special abrasion resistant material providing improved service life. Precisely machined gears ensure our units provide excellent low noise characteristics. Our cold extrusion pump bodies can endure pressures above 30Mpa. High strength cast iron front and rear covers also enhance our reliability. Our units are widely used in the industrial mobile marine and aerospace industries.

Features

  • RYAN external gear pumps are produced in 9 different series (0P, 1P, 1.5P, 2P, 2.5P, 2.8P, 3P, 3.5P, 4P) and in each group different displacements are obtained by changing the gears width, refer to performance curves.
  • Pressure: RYAN offers three pressure ratings E, F and G.
  • Efficiencies: volumetric efficiency up to 98%, mechanical efficiency up to 88%.
  • Mountings: flanges, shaft ends and ports.
  • Seals: viton, buna and EPR seals is available.
  • Integration: all pumps can be odered with relief valve and check valve.
  • Introduction of RYAN External Gear Pumps.

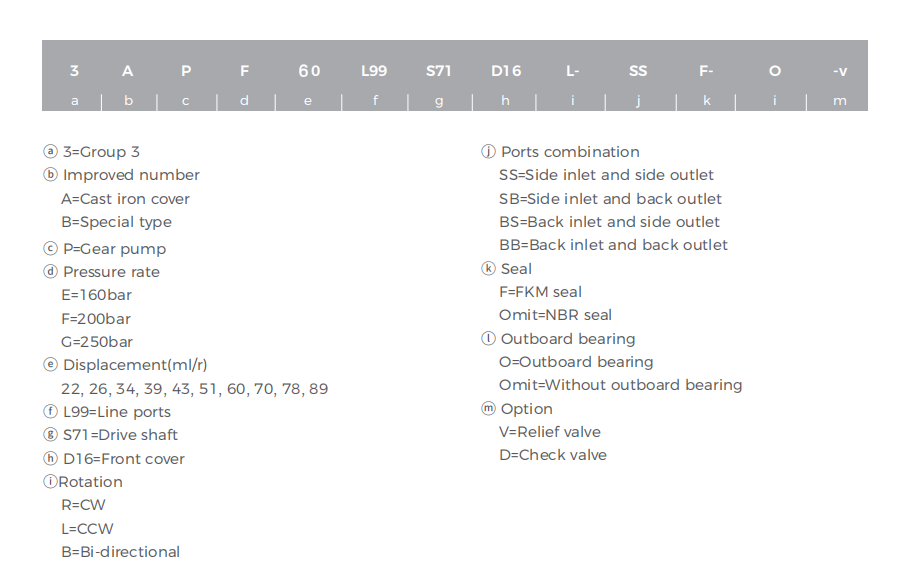

Ordering Code

Technical Parameters

Model
Displacement
(ml/r)

Pressure(bar)

Speed(r/min)

  L
(mm)

 L1
(mm)
ØD1Ød7T1ØD2Ød2T2
RatedPeakRatedMax.Min.
3APF22F10T11S1422 200 250 2000 3000 400 128.5 65.5 56 27 M1056 19 M10
3APF26F10T11S1426 200 250 2000 3000 400 131.5 67.0
3APF34F10T11S1434 200 250 2000 3000 400 137.0 69.8
3APF39F10T11S1439 200 250 2000 3000 400 141.0 71.8
3APF43F09T11S1443 200 250 2000 2800 400 143.5 73.0 51 27 51 27
3APF51F17T11S1451 200 250 2000 2400 400 149.5 76.0 56 27 56 27
3APF60F12T11S1460 180 230 1500 2800 400 156.0 79.3 62 33 51 27
3APF70F12T11S1470 180 200 1500 2500 400 163.0 82.8
3APF78F12T11S1478 160 200 1500 2300 400 169.2 85.2
3APF89F12T11S1489 140 180 1500 2000 400 174.2 88.2

Dimensions

Application Areas

RYAN GH series cycloidal motors are widely used in conveyors, textile machinery, mining machinery, industrial processing, cooling equipment,
engineering machinery, and agricultural machinery.
