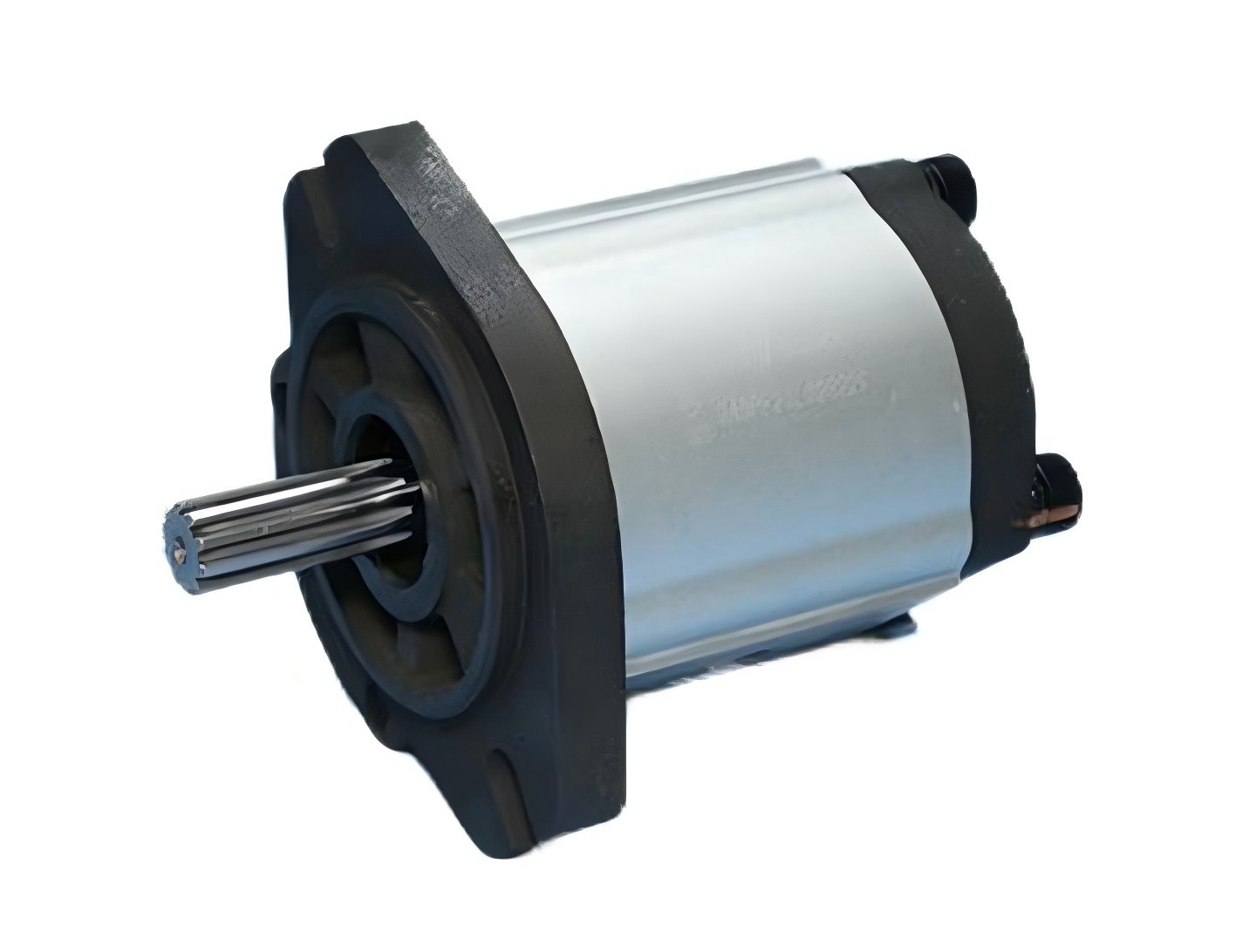

Gear motors from Guorui Hydraulics have a floating bushing feature with automatic axial clearance compensation. The bushings are made with special abrasion resistant material providing improved service life. Precisely machined gears ensure the excellent characteristics under low noise condition. Our cold extrusion motor bodies can endure pressure above 30 MPa. High strength cast iron front & rear covers also enhance our reliability. Our gear motors are widely used in the industrial, mobile, marine and aerospace industries.
Direction of rotation: bi-direction and single-direction
Permissible ambient temperature range: min. -20°C - max. 60°C
Operating pressures: input side P1 max = refer above data; outlet side P2 max. 3 bar
Drain pressure: max. 2 bar, Short time: max. 5bar
Fluid temperature range: max. 90°C for NBR rotary shaft lip-type seal, 100°C for FKM rotary shaft lip-type seal
Viscosity range: min. 10mm2/s - max. 600mm2/s

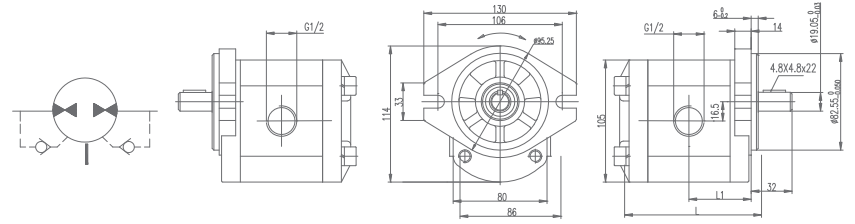

This motor is internal drain port structure. Two check valves guarantee its bi-directional fuction and have the oil of internal leakage return to inlet port. The function symbols are as follows：
| Displacement (ml/r) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 23 | 25 |
| L1 | 44 | 45 | 47 | 48 | 50 | 51 | 53 | 55 | 56 | 58 | 60 |
| L | 96 | 98 | 102 | 104 | 108 | 108 | 114 | 117 | 120 | 123 | 128 |
