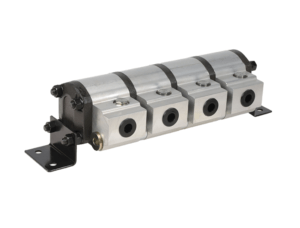

RYAN 2FDF series flow dividers are widely used in automobile tail gate，forklift，harvest，tractor，aerial work platform，splitter and crane trunk.

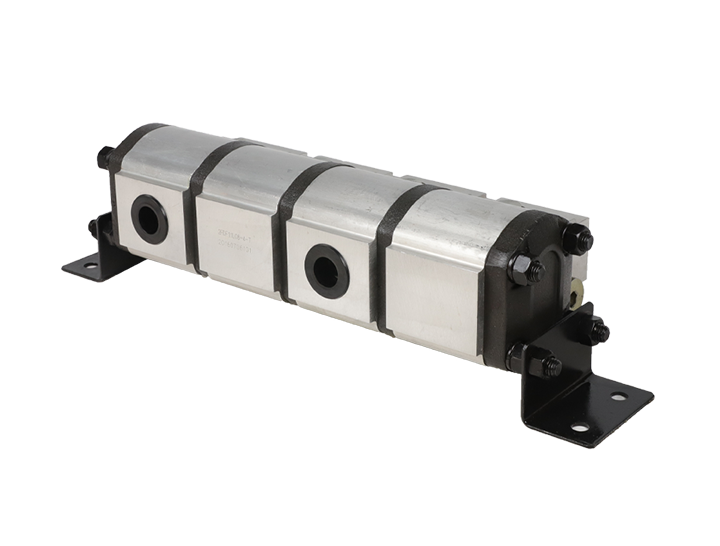

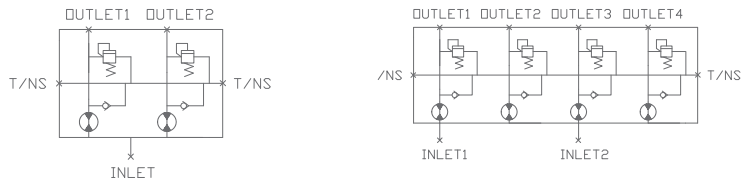

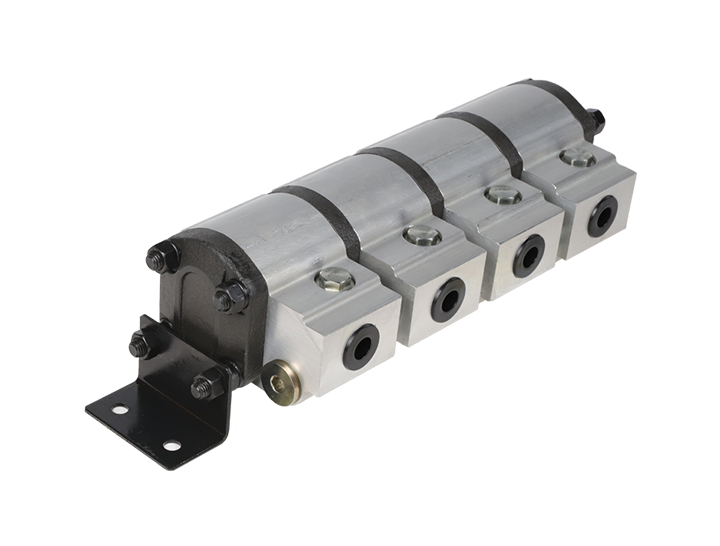

Two or several gear motors can be combined into flow divider after being connected by coupling. It guatantees synchronous operation and accuracy of power element like cylinder (Its principle drawing is as follows), hydraulic liquid from the pipe is input into the inlet port and the same amount liquid is distributed to the outlet port by the rotation of gears that with same specification. Obviously, accuracy of flow divider is up to accuracy of gears and relative spare parts.
Ryan has three series for flow divider 1FDF, 2FDF, 3FDF. Flow accuracy and pressure loss are as follows:
| Displacement | Speed | Flow range/Section | Min.system pressure | Max.pressure of oiloutlet | |||||||
| in³/r | ml/r | min. (rpm) | max. (rpm) | gpm | lpm | psi | bar | psi | bar | ||
| 0.366 | 6 | 800 | 3500 | 1.26 | 5.51 | 4.8 | 21 | 1160 | 80 | 3625 | 250 |
| 0.488 | 8 | 1.68 | 7.34 | 6.4 | 28 | 3625 | 250 | ||||
| 0.671 | 17 | 2.31 | 10.1 | 8.8 | 38.5 | 3625 | 250 | ||||
| 0.732 | 12 | 2.52 | 11.02 | 9.6 | 42 | 725 | 50 | 3190 | 220 | ||
| 0.854 | 14 | 3000 | 2.94 | 11.02 | 11.2 | 42 | 3190 | 220 | |||
| 1.037 | 17 | 3.57 | 13.38 | 13.6 | 51 | 3190 | 220 | ||||
| 1.525 | 25 | 2500 | 5.25 | 16.39 | 20 | 62.5 | 3190 | 220 | |||
| 1.891 | 31 | 6.51 | 20.33 | 24.8 | 77.5 | 2610 | 180 | ||||
