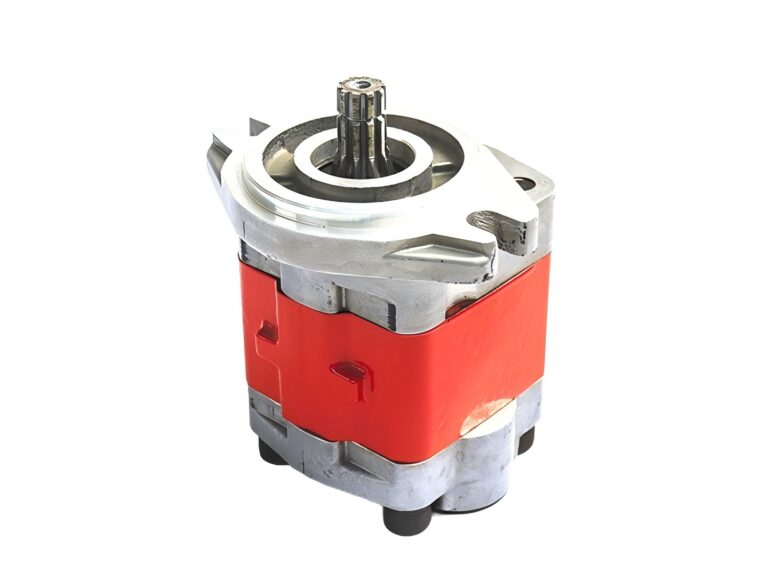

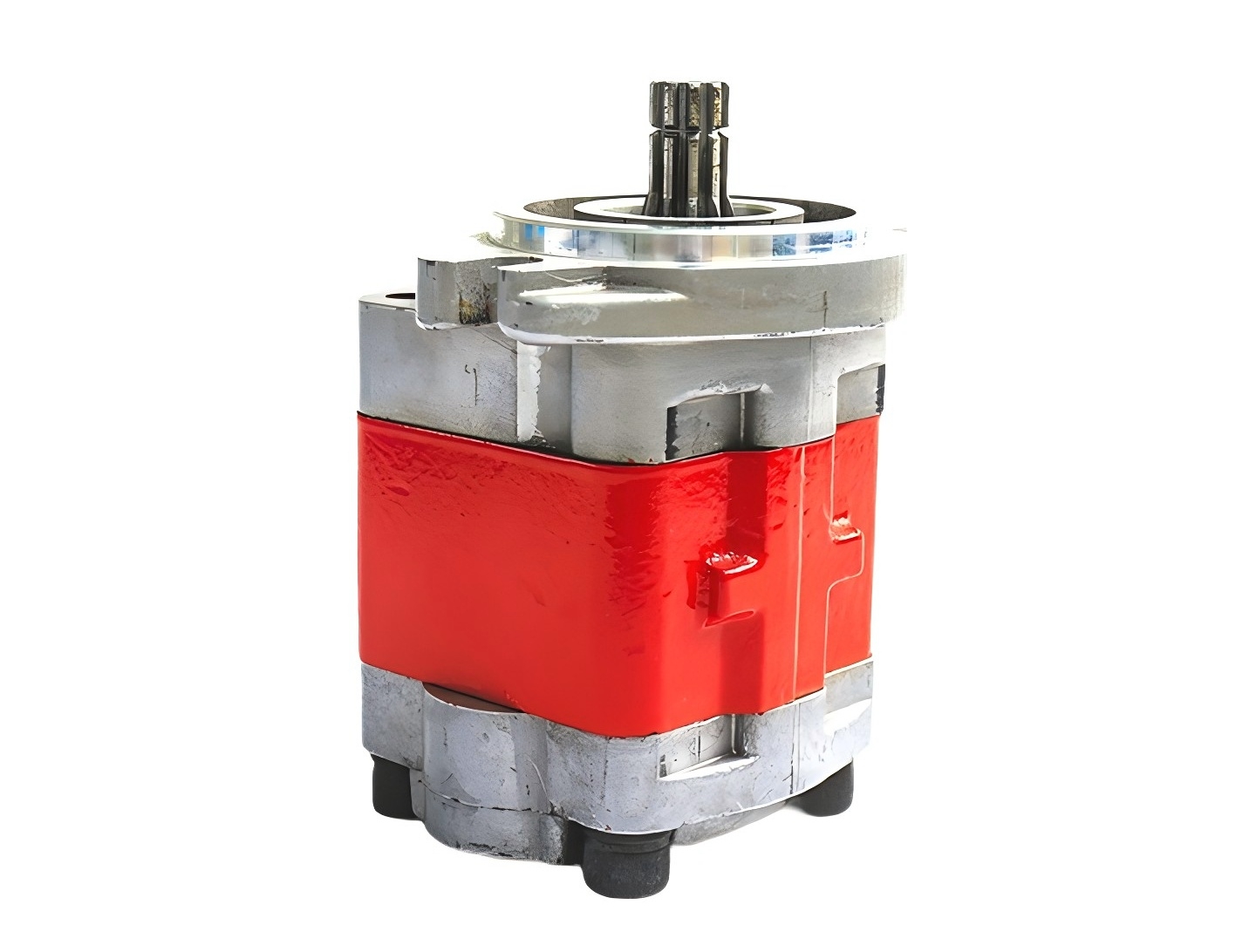

2.5QPF **LJ03S65SP9LBB

Group 2.5 gear pump : the displacement ranges from 20-40cc/r.

    Online consultation

    Ordering Code

    Technical Parameters

    Model
    Displacement
    (ml/r)    		Pressure(bar)Speed(r/min)
     L
    (mm)    		InletOutlet
    RatedPeakRatedMax.Min.
    2.5QPF16LJ03S65SP9LBB16 200 250 1500 2500 500 101.5 G1G3/4
    2.5QPF18LJ03S65SP9LBB18 200 250 1500 2500 500 103.5
    2.5QPF20LJ03S65SP9LBB20 200 250 1500 2500 500 105.5
    2.5QPF23LJ03S65SP9LBB23 200 250 1500 2500 500 108.5
    2.5QPF25LJ03S65SP9LBB25 200 250 1500 2500 500 110.5
    2.5QPF28LJ03S65SP9LBB28 200 250 1500 2500 500 113.5
    2.5QPF30LJ03S65SP9LBB30 200 250 1500 2500 500 115.5
    2.5QPF32LJ03S65SP9LBB32 200 250 1500 2500 500 117.5
    2.5QPF36LJ03S65SP9LBB36 200 250 1500 2500 500 121.5
    2.5QPF40LJ03S65SP9LBB40 200 250 1500 2500 500 125.5
    2.5QPF45LJ03S65SP9LBB45 200 250 1500 2500 500 130.5
    2.5QPF52LJ03S65SP9LBB52 200 250 1500 2500 500 137.5

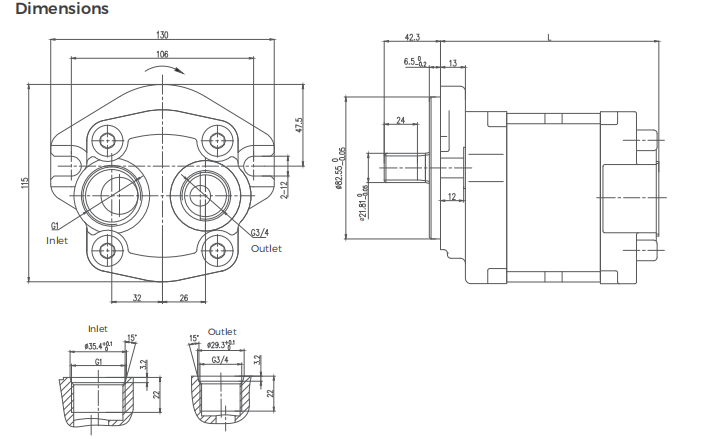

    Dimensions

    Application Areas

    RYAN Group 2.5 series gear pumps are widely used in forklift, harvester, tractor, aerial work platform, road roller and crane truck.
