The displacement ranges from 1.1cc to 8 cc, maximum pressures up to 300 bar. We have single pump, tandem pumps and multiple pumps available.
| Model | Displacement (ml/r) | Pressure(bar) | Speed(r/min) | Port | ||||
| Rated | Peak | Rated | Max. | Min. | Inlet | Outlet | ||
| EPF1.6L3509S2SS-YD | 1.6 | 160 | 200 | 2000 | 4500 | 500 | 3/4-16UNF -2B | 9/16-18UNF -2B |
| EPF2.7L3509S2SS-YD | 2.7 | 160 | 200 | 2000 | 4500 | 500 | ||
| EPF4.1L3509S2SS-YD | 4.1 | 160 | 200 | 2000 | 4500 | 500 | ||
| EPF6.1L3509S2SS-YD | 6.1 | 160 | 200 | 2000 | 4500 | 500 | ||

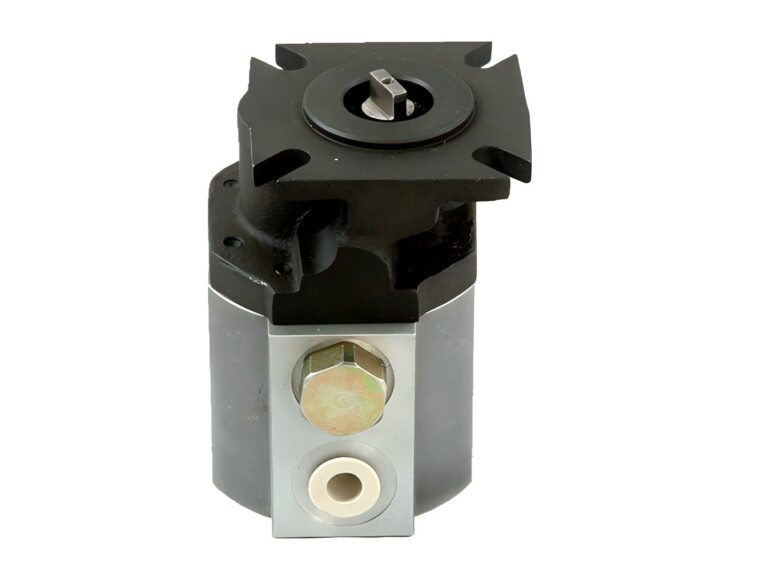

RYAN 1EPF gear pumps are widely used in forklift, harvester, tractor, aerial work platform and road roller.
