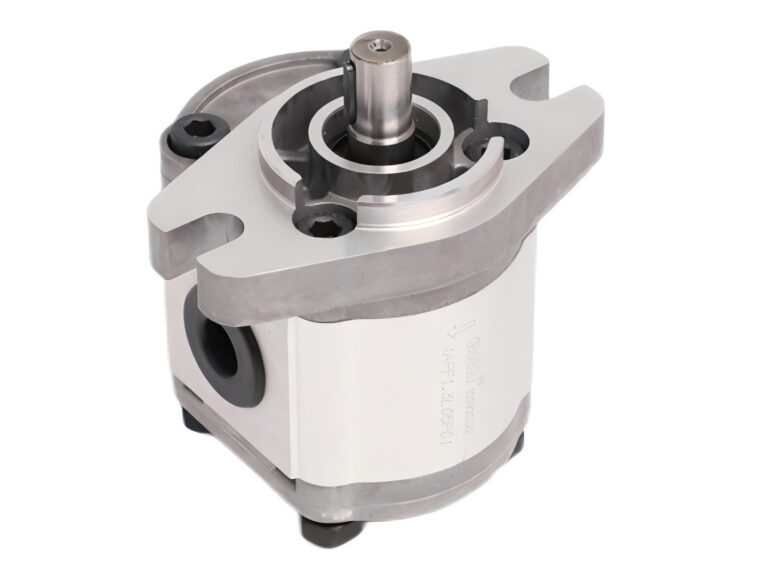

RYAN Group 1 series gear pumps in aluminum and with external gears, belonging to displacement size Group 1. You can choose between standard, at separate-stages, single inlet and shaped pumps.

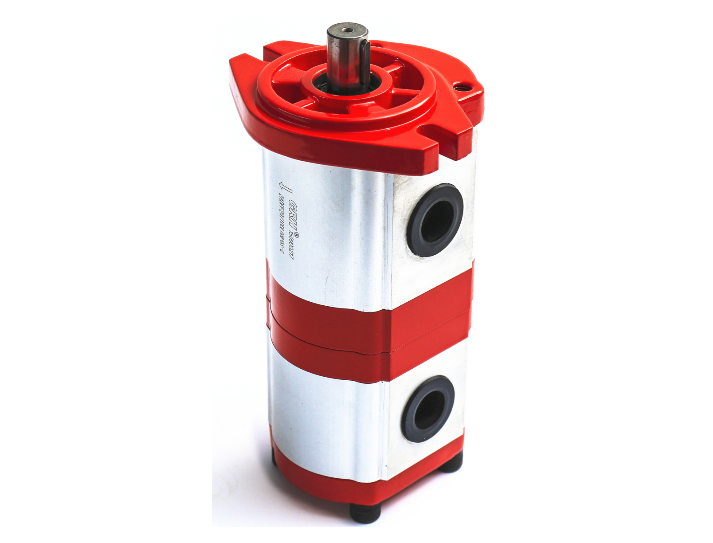

The displacement ranges from 1.1cc to 8 cc, maximum pressures up to 300 bar. We have single pump, tandem pumps and multiple pumps available.

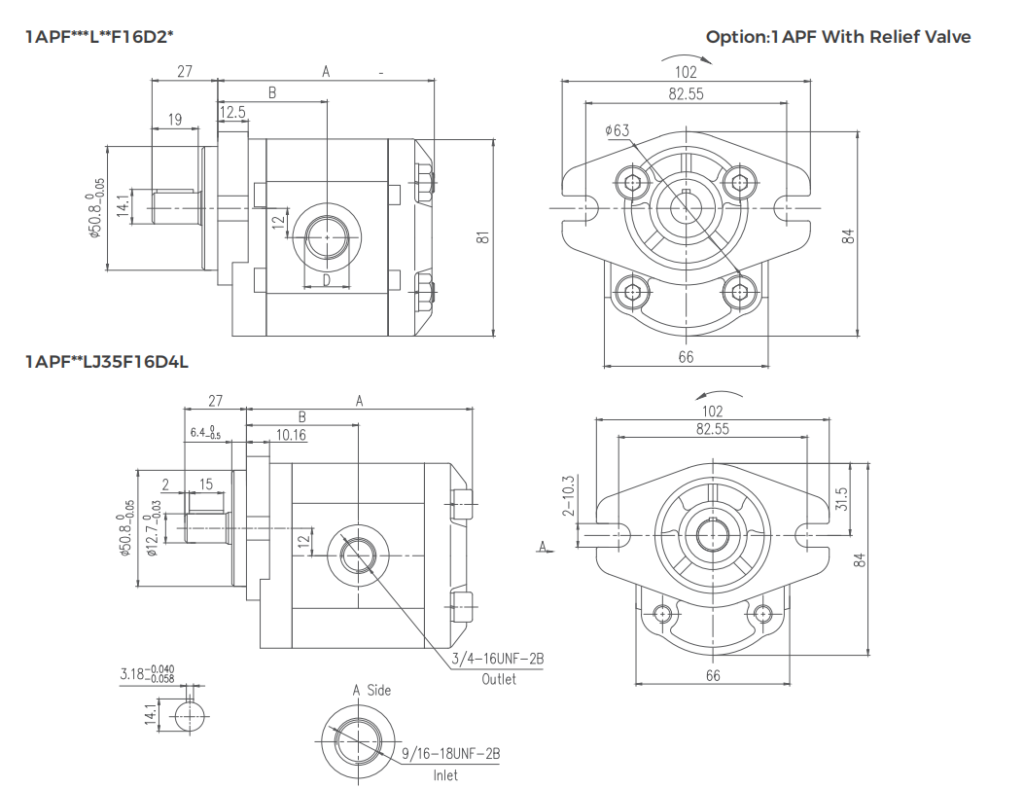

| Model | Displacement (ml/r) | Pressure(bar) | Speed(r/min) | A(mm) | B(mm) | D | ||||
| Rated | Peak | Rated | Max. | Min. | In | Out | ||||
| 1APF1.3L05F16D2* | 1.3 | 200 | 250 | 3000 | 4500 | 500 | 82 | 42.0 | G1/2 | G3/8 |
| 1APF2.0L05F16D2* | 2.0 | 200 | 250 | 3000 | 4500 | 500 | 84 | 43.0 | ||
| 1APF2.7L05F16D2* | 2.7 | 200 | 250 | 3000 | 4500 | 500 | 86 | 44.0 | ||
| 1APF3.4L05F16D2* | 3.4 | 200 | 250 | 3000 | 4500 | 500 | 88 | 45.0 | ||
| 1APF4.1L05F16D2* | 4.1 | 200 | 250 | 3000 | 4500 | 500 | 90 | 46.0 | ||
| 1APF5.1L05F16D2* | 5.1 | 200 | 250 | 3000 | 4500 | 500 | 93 | 47.5 | ||
| 1APF6.1L05F16D2* | 6.1 | 200 | 250 | 3000 | 4500 | 500 | 96 | 49.0 | ||
| 1APF7.1L05F16D2* | 7.1 | 200 | 250 | 3000 | 4500 | 500 | 101 | 50.5 | ||
RYAN Group 1 series gear pumps are widely used in forklift，harvester，tractor，aerial work platform road roller and crane truck.
