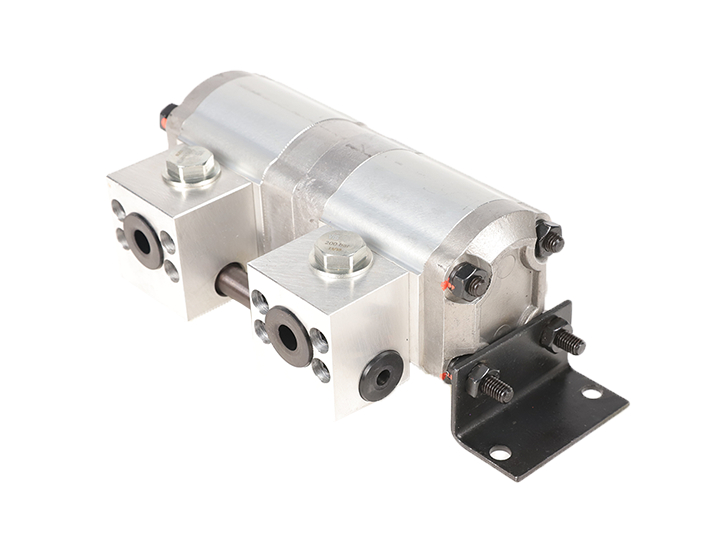

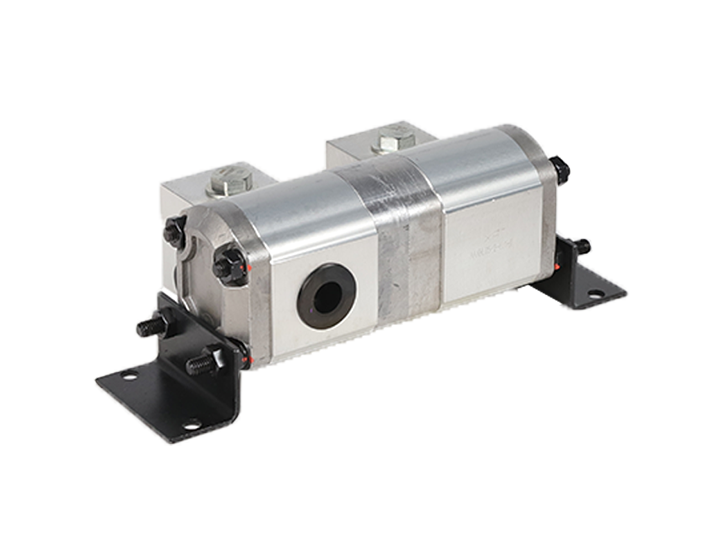

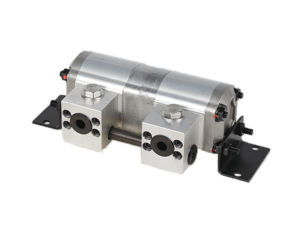

1AFDFL-Y-V Flow Dividers

    

Introduction of Flow Dividers

Two or several gear motors can be combined into flow divider after being connected by coupling. It guatantees synchronous operation and accuracy of power element like cylinder (Its principle drawing is as follows),hydraulic liquid from the pipe is input into the inlet port and the same amount liquid is distributed to the outlet port by the rotation of gears that with same specification. Obviously, accuracy of flow divider is up to accuracy of gears and relative spare parts.

Ordering Code

Displacement		Speed		Flow range/Section				Min.system pressure		Max.pressure of oil outlet
in³/r	ml/r	min. (rpm)	max. (rpm)	gpm		lpm		psi	bar	psi	bar
0.103	1.7	800	3000	0.35	1.33	1.36	5.1	1160	80	3480	240
0.122	2			0.42	1.57	1.6	6			3480	240
0.146	2.4			0.5	1.88	1.92	7.2			3480	240
0.164	2.7			0.56	2.12	2.16	8.1			3480	240
0.183	3			0.63	2.36	2.4	9			3480	240
0.207	3.4			0.71	2.68	2.72	10.2			3480	240
0.250	4.1			0.86	3.23	3.28	12.3	725	50	3480	240
0.311	5.1			1.07	4.01	4.08	15.3			3480	240
0.372	6.1			1.28	4.8	4.88	18.3			3480	240
0.433	7.1			1.49	5.59	5.68	21.3			3480	240
0.488	8			1.68	6.3	6.4	24			3480	240
