| Model | Displacement (ml/r) | Pressure(bar) | Speed(r/min) | Min.flow at rated pressure and speed (L/min) | Rotation | Weight (Kg) | |||
| Rated | Peak | Rated | Peak | Min. | |||||
| 4W5479 | 8.0 | 0.25 | 0.35 | 1500 | 2000 | 500 | 10.8 | CCW | 18.4 |
| 5H1719 | 12.0 | 0.80 | 2.00 | 1500 | 2000 | 500 | 15.0 | CCW | 15.0 |
| 3N2078 | 16.0 | 2.00 | 3.00 | 1500 | 2000 | 500 | 19.0 | CCW | 19.4 |
| 3S4386 | 22.0 | 2.50 | 3.15 | 1500 | 2000 | 500 | 300 | CW | 19.4 |
| 5M7864 | 28.0 | 2.50 | 3.15 | 2000 | 2500 | 500 | 45.6 | CCW | 18.4 |
| 3P6814 | 32.0 | 2.50 | 3.15 | 1800 | 2500 | 500 | 45.0 | CW | 18.4 |
| 7S4629 | 40.0 | 2.50 | 3.15 | 2000 | 2500 | 500 | 18.0 | CCW | 18.4 |
| 7G4856 | 47.0 | 26.00 | 35.00 | 1500 | 2000 | 500 | 78.0 | CCW | 23.2 |
| 1192924 | 47.5 | 26.00 | 35.00 | 1500 | 2500 | 500 | 66.0 | CW | 5.0 |
| 9P9610 | 55.0 | 26.00 | 35.00 | 1500 | 2000 | 500 | 91.5 | CCW | 24.5 |
| 1233472 | 55.0 | 26.00 | 35.00 | 1500 | 2000 | 500 | 91.5 | CCW | 22.3 |
| 1226658 | 55.0 | 26.00 | 35.00 | 1500 | 2500 | 500 | 91.5 | CCW | 25.2 |
| 9U9535 | 65.0 | 26.00 | 35.00 | 1500 | 2000 | 500 | 108.0 | CCW | 26.5 |
| 3P4002 | 71.0 | 3.00 | 4.00 | 2000 | 2500 | 500 | 174.0 | CW | 15.5 |
| 3P6816/3P0380 | 71.0 | 2.50 | 3.15 | 1800 | 2500 | 500 | 115.0 | CW | 19.4 |
| 8E1217 | 73.0 | 26.00 | 35.00 | 1500 | 2000 | 500 | 121.5 | CCW | 31.5 |
| 2P9239 | 73.3 | 2.50 | 3.15 | 1800 | 2500 | 500 | 122.0 | CW | 15.5 |
| 3G4768 | 90.0 | 16.00 | 20.00 | 2000 | 2500 | 500 | 180.0 | CCW | 19.4 |
| 4W2448 | Front:62.0 | 2.00 | 3.00 | 1500 | 2000 | 500 | 109.0 | CW | 25.0 |
| Rear:48.0 | 2.00 | 3.00 | 82.0 | ||||||

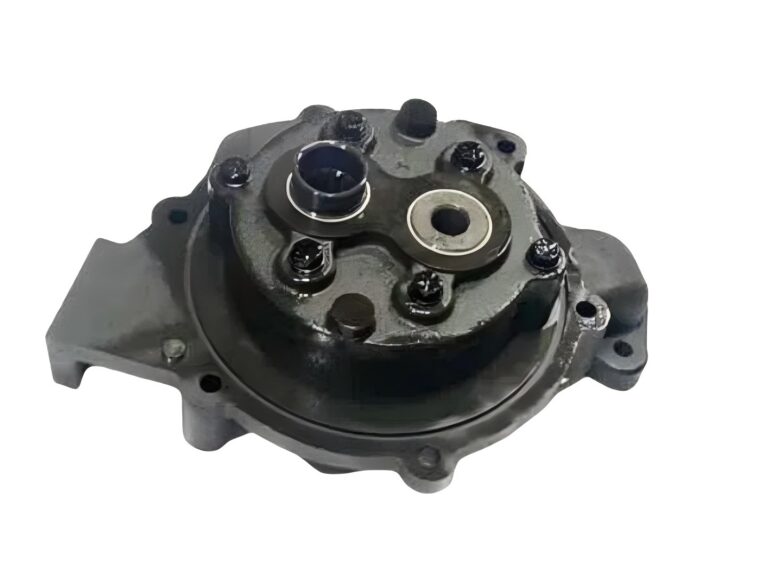

RYAN Cat pumps are widely used in hydraulic systems of bulldozer, loader, crane and other construction machineries.
