0PF**K07O3SP3B-BB

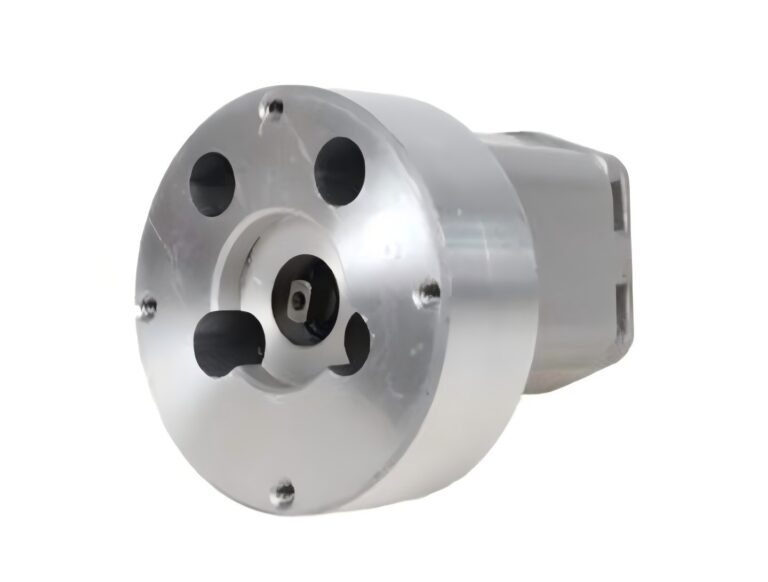

RYAN  group 0 gear pumps is formed of a gear housing, mounting flanges and covers in aluminum material, offering outstanding mechanical and volumetric efficiency.

    Online consultation

    Product Description

    External gear pumps from RYAN Hydraulics have a floating bushing feature with automatic axial clearance compensation. The bushings are made with special abrasion resistant material providing improved service life. Precisely machined gears ensure our units provide excellent low noise characteristics. Our cold extrusion pump bodies can endure pressures above 30Mpa. High strength cast iron front and rear covers also enhance our reliability. Our units are widely used in the industrial mobile marine and aerospace industries.

    Features

    • RYAN external gear pumps are produced in 9 different series (0P, 1P, 1.5P, 2P, 2.5P, 2.8P, 3P, 3.5P, 4P) and in each group different displacements are obtained by changing the gears width, refer to performance curves.
    • Pressure: RYAN offers three pressure ratings E, F and G.
    • Efficiencies: volumetric efficiency up to 98%, mechanical efficiency up to 88%.
    • Mountings: flanges, shaft ends and ports.
    • Seals: viton, buna and EPR seals is available.
    • Integration: all pumps can be odered with relief valve and check valve.
    • Introduction of RYAN External Gear Pumps.

    Ordering Code

    Technical Parameters

    Model
    Displacement
    (ml/r)    		Pressure(bar)Speed(r/min)RotationInlet and Outlet
    Drain
    Port
    RatedPeakRatedMax.L(mm)
    OPF0.16K0703SP3B-BB0.16 200 250 3000 6000 60.9 Biø5.5ø5.5
    OPF0.20K0703SP3B-BB0.20 200 250 3000 6000 61.2
    OPF0.25K0703SP3B-BB0.25 200 250 3000 6000 61.6
    OPF0.32K0703SP3B-BB0.32 200 250 3000 6000 62.1
    OPF0.38K0703SP3B-BB0.38 200 250 3000 6000 62.5
    OPF0.50K0703SP3B-BB0.50 200 250 3000 6000 63.5
    OPF0.63K0703SP3B-BB0.63 200 250 3000 6000 64.5
    OPF0.75K0703SP3B-BB0.75 200 250 3000 6000 65.6
    OPF0.80K0703SP3B-BB0.80 200 250 3000 6000 66.0
    OPF1.00K0703SP3B-BB1.00 200 250 3000 6000 67.6
    OPF1.25K0703SP3B-BB1.25 200 250 3000 5000 69.6
    OPF1.50K0703SP3B-BB1.50 200 250 3000 5000 71.6
    OPF1.75K0703SP3B-BB1.75 160 200 3000 4500 73.6
    OPF2.00K0703SP3B-BB2.00 160 200 3000 4500 75.6

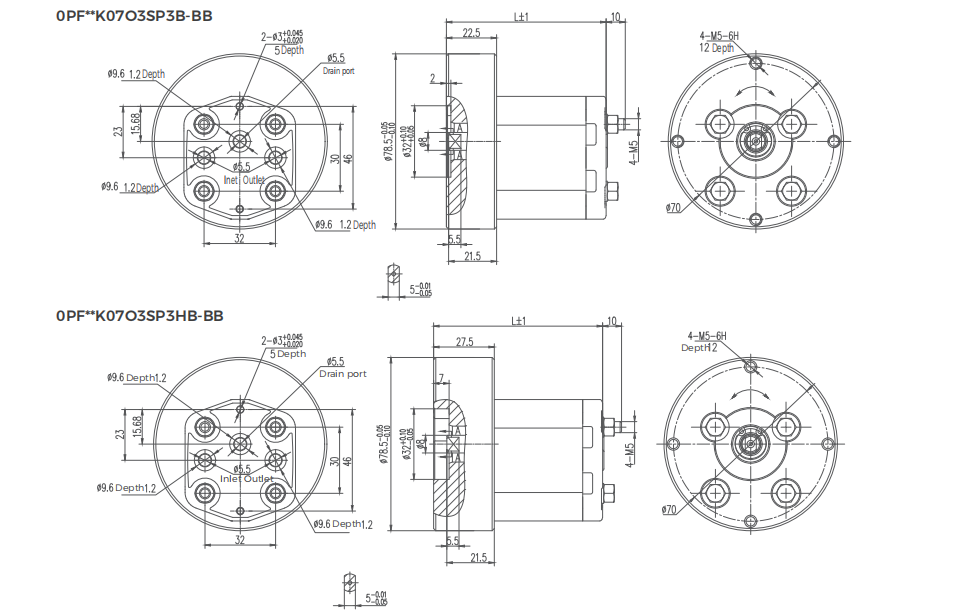

    Dimensions

    Application Areas

    RYAN Group 0 series gear pumps are widely used in forklift，harvester，tractor，aerial work platform and road roller.
